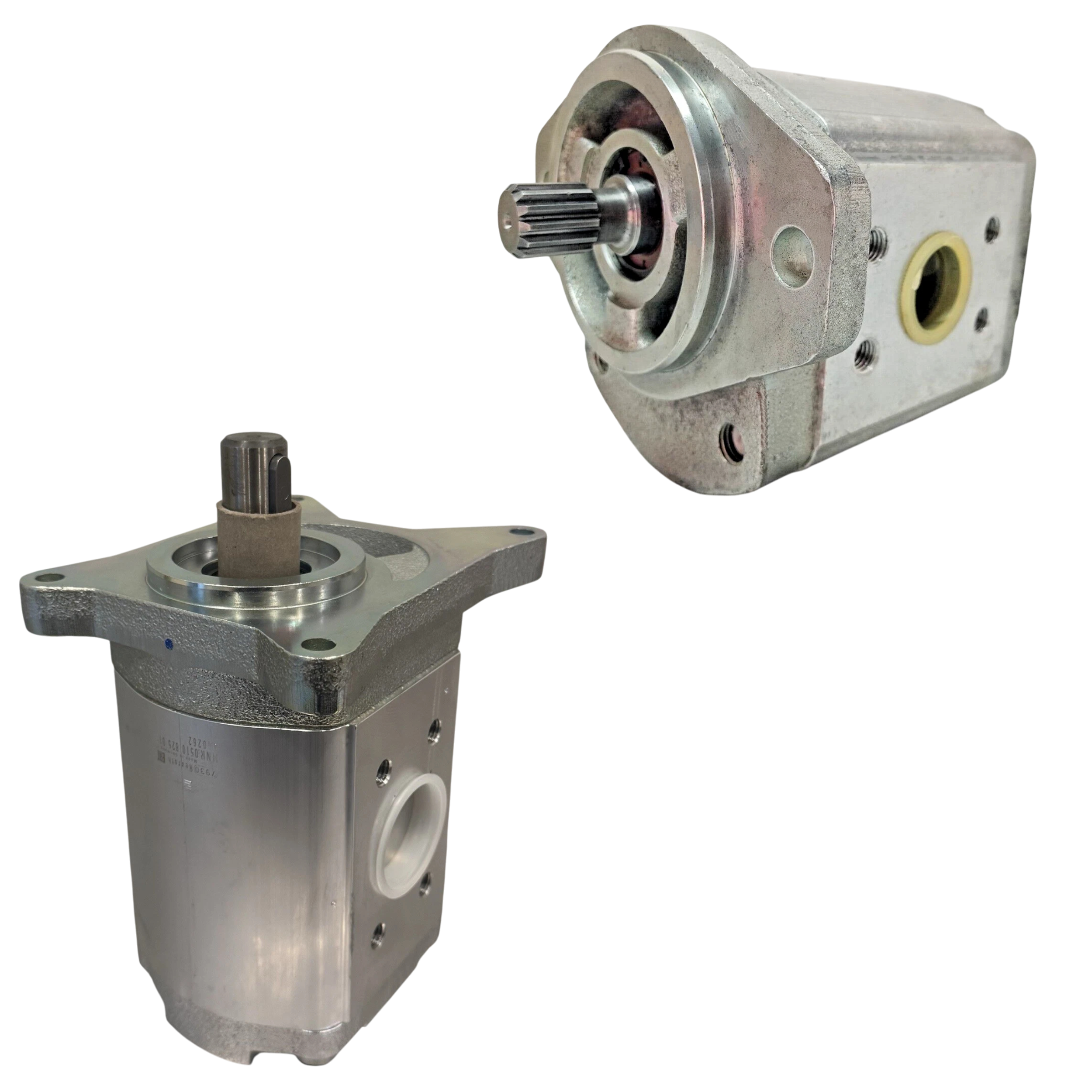

High Performance AZPG Gear Pumps

The Bosch Rexroth AZPG High Performance Gear Pumps are robust fixed displacement units designed for continuous operation in demanding hydraulic systems. They work by meshing two gears within a tight housing to trap and move fluid from the inlet to the outlet, producing a flow rate proportional to the rotational speed and displacement volume. These high-quality pumps utilize slide bearings to handle high loading and achieve long service life, operating with continuous pressures up to 250 bar and intermittent peaks up to 280 bar. Their main function is to reliably generate controlled hydraulic fluid flow and power, with a range of displacements (Sizes 22 to 100) and the capability for multiple pump combinations for complex circuits.
