Bosch Rexroth | MV037-A2-1S-020-31-B1-QBB-000

MV037-A2-1S-020-31-B1-QBB-000

Name: MV037-A2-1S-020-31-B1-QBB-000
Brand: Bosch Rexroth
Price: 146 USD
Availability: InStock
Rating: 4.4 (13 reviews)

Request a Quote

Call For Quote

Repair Options Available

Worldwide Delivery

1-Year Warranty

What Happens Next?

Email Confirmation

You will get an email confirming we have received your inquiry.

Dedicated Account Manager

A team member will review your request and be in touch concerning any questions or specifications.

Quote Delivered

You will receive a comprehensive quote tailored to your specific needs.

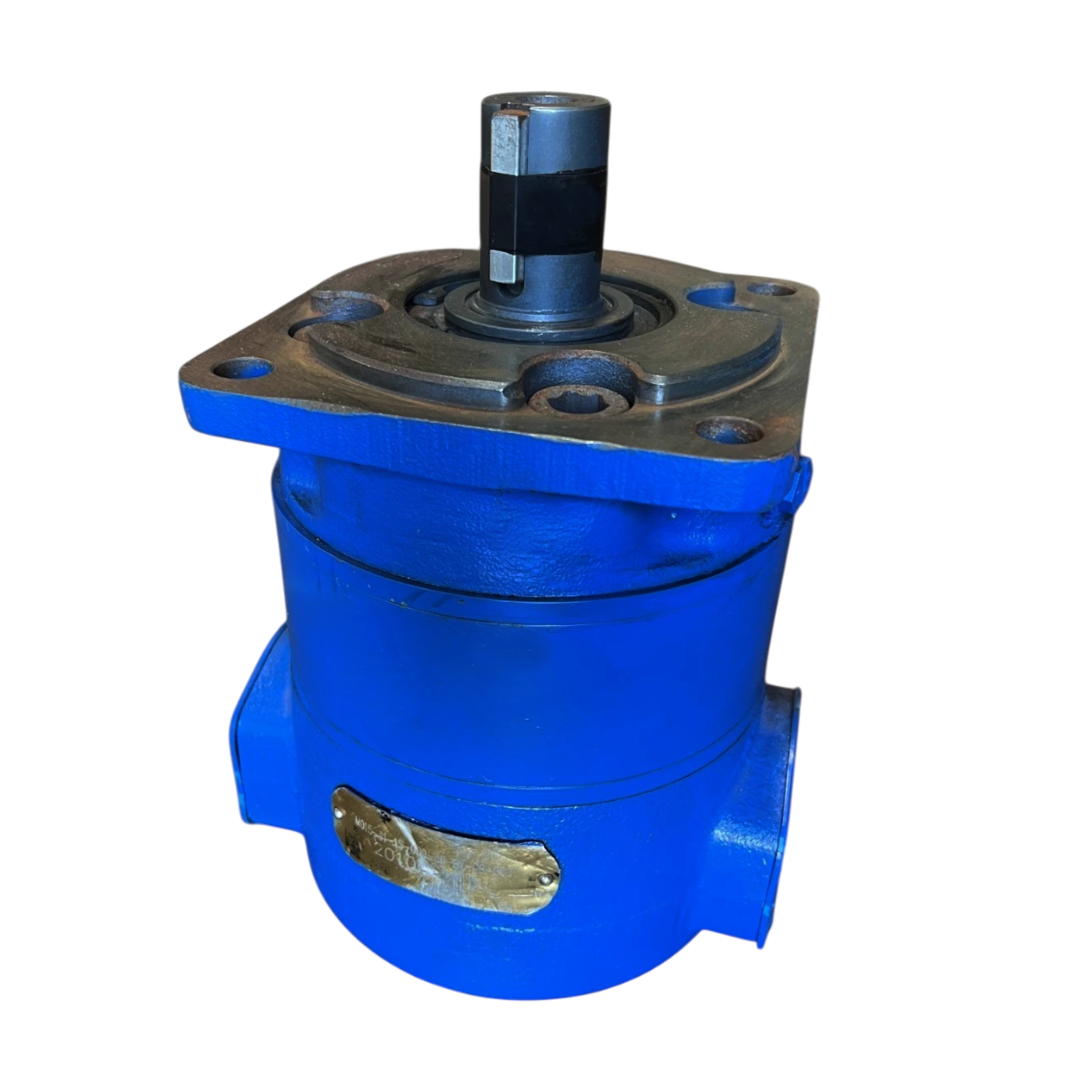

The Bosch Rexroth MV037-A2-1S-020-31-B1-QBB-000 is a hydraulic motor from the MV Rineer High Torque Vane Motors series. It features a displacement of 20 cubic inches per revolution, which equals 328 cubic centimeters per revolution. This motor is designed to operate at a maximum continuous pressure of 3000 psi and a maximum intermittent pressure of 3500 psi. It can reach a maximum continuous speed of 1000 rpm and a maximum intermittent speed of 1200 rpm. The mounting flange conforms to the SAE J744 152-4 standard, and it has a port configuration of a 1-1/2 inch four-bolt flange with two ports. The shaft interface meets SAE J744 44-4 standards and includes a quad ring shaft seal. Its spline is classified as ANSI B92.1-1996 Class 7, with 13 teeth, an 8/16 diametral pitch, and a 30-degree pressure angle. This motor weighs 97 pounds, or 44 kilograms, and uses NBR (Buna) main body O-rings.

Technical Specifications

Displacement
20 in³/rev (328 cm³/rev)

Main Body O-rings
NBR (Buna)

Max Continuous Pressure
3000 psi (207 bar)

Max Continuous Speed
1000 rpm

Max Intermittent Pressure
3500 psi (241 bar)

Max Intermittent Speed
1200 rpm

Mounting Flange
SAE J744 152-4

Port Configuration
1-1/2 in 4-bolt flange, 2-port

Shaft Interface Standard
SAE J744 44-4

Shaft Seal
Quad ring

Spline Class
ANSI B92.1-1996 Class 7

Spline Diametral Pitch
8/16 DP

Spline Pressure Angle
30°

Spline Teeth
13 teeth

Torque @ 3000 Psid
722 lb-ft (979 Nm)

Weight
97 lb (44 kg)
