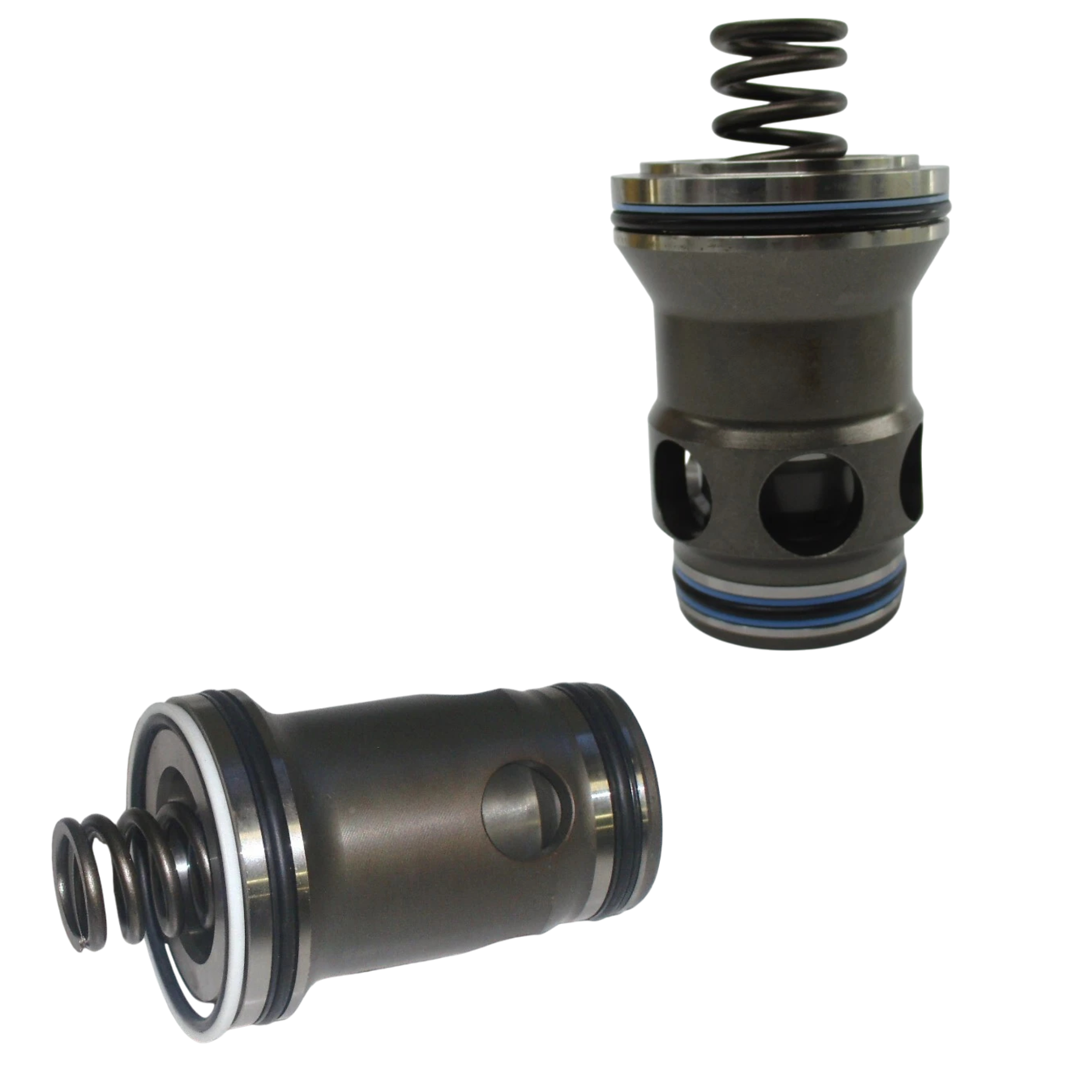

LC 2 Way Cartridge Valves

The Bosch Rexroth LC 2-Way Cartridge Valves are high-performance screw-in poppet valves that function as primary switching or logic elements within compact hydraulic manifold systems. They operate based on the pressure ratio acting on the valve poppet's control surfaces (A, B, and C), which determines whether the main flow path between ports A and B is open or closed. By utilizing various control covers, the LC valve can be converted to perform diverse functions, including directional control, pressure relief, or flow regulation. Specifically, applying pilot pressure to the control port (C) shifts the poppet to either open the primary flow or regulate the flow to limit system pressure. This robust and versatile design allows system builders to integrate complex hydraulic control circuits with high flow and pressure capabilities.
